LD 3 Air Cargo Containers

LD 3 AKE

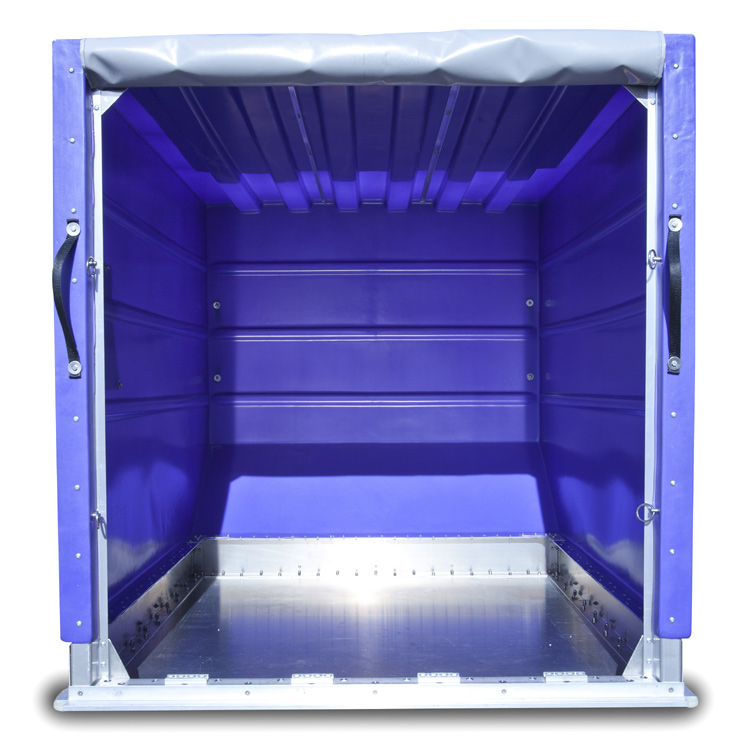

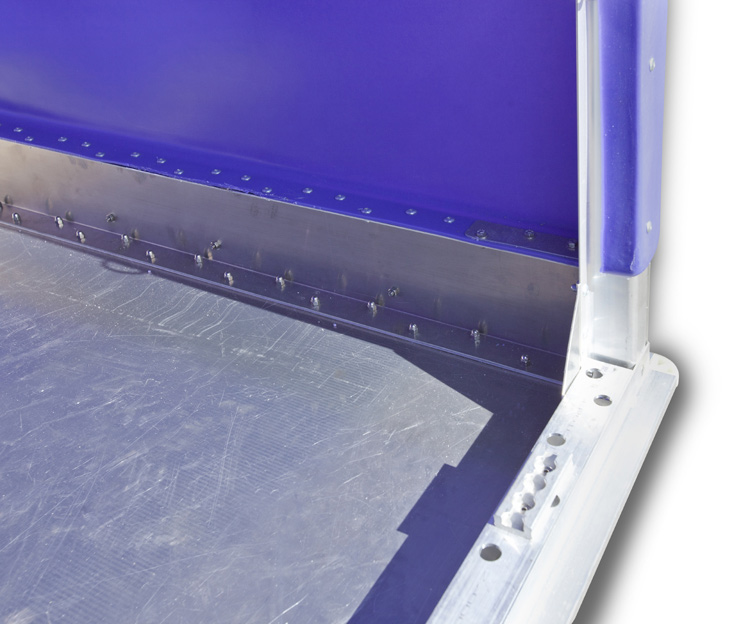

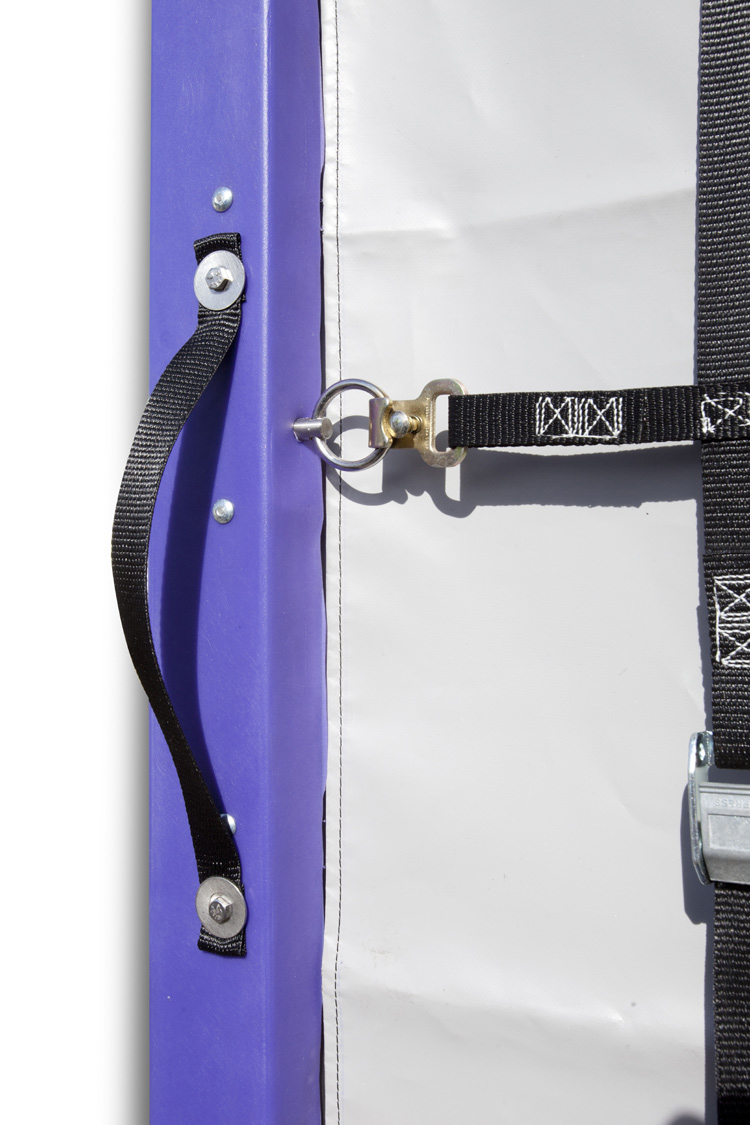

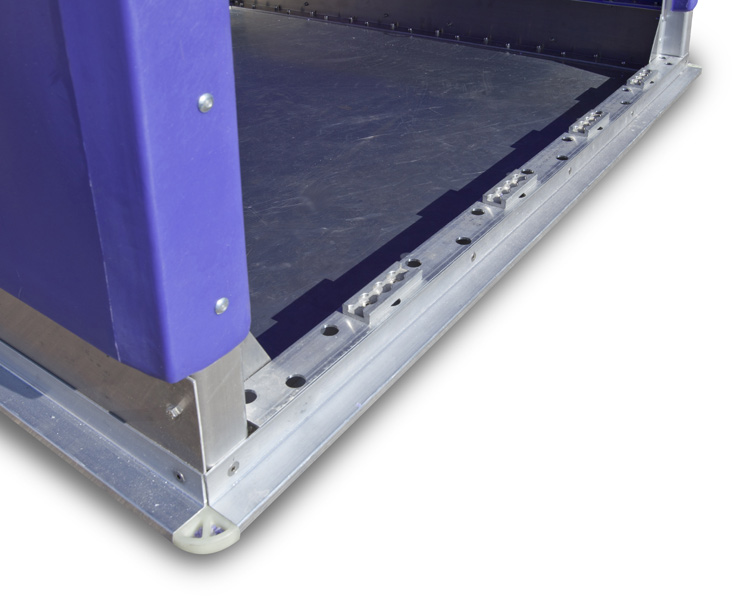

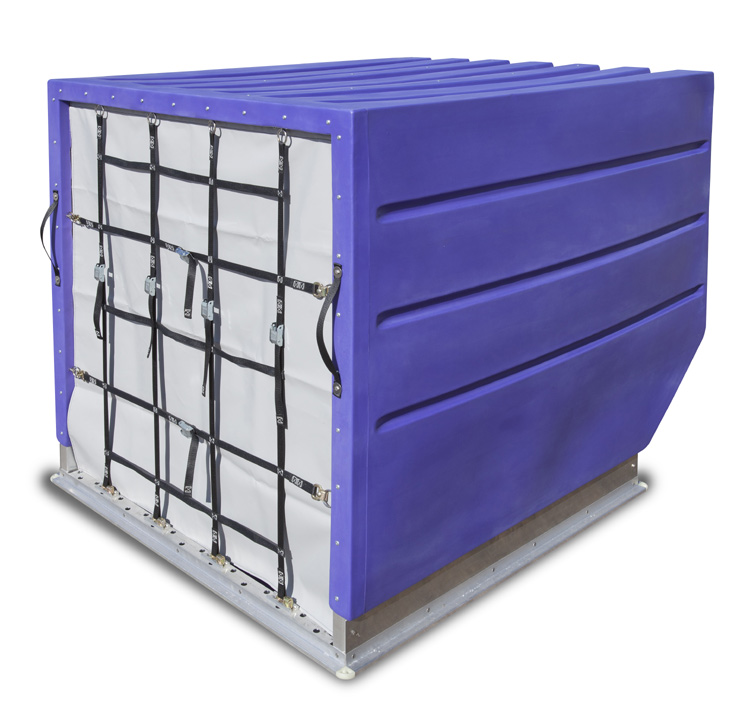

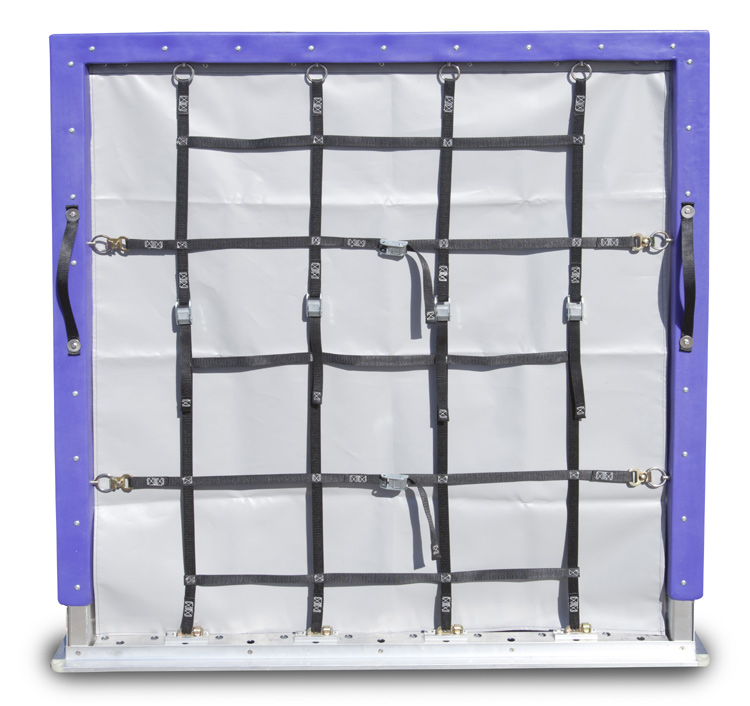

LD 3 AKE Air Cargo Container Image Gallery Click any of the thumbnail images to the right to display the larger image in the LD 3 Air Cargo Container Image Gallery. Granger Aerospace LD 3 AKE Air Cargo Container

LD 3 Features: Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE. The LD-3 Body is weld-able The Granger Aerospace Products Air Cargo Container is lighter than most standard containers. Granger Aerospace Products cargo containers are robust. No aluminum body panels to patch. No aluminum body frames to replace. Lighter weight, less down time and lower repair costs equals lower cost of ownership. Enhanced Threshold. Fewer fasteners to replace. Unique design allows for faster repairs. Less spare parts to keep in stock. Granger Aerospace Products offers alternative solutions for your ULD needs. It is our goal to offer our customer not only lower cost container but a trusted partnership for your company. It’s our goal to offer more choices to our customers Through or focus on technology and research, we are continually making improvements to our design. Our customers save fuel by using robust as well as cost-efficient lightweight containers.

LD 3 AKE Technical Specifications

Technical Specifications
IATA		C90d
SAE AS 36100 class		LD-3/AKE
Granger Aerospace P/N		NAS 3610 (2K2C)
Base size	1534 x 2438 mm	61.5 in x 60.4 in
Height	1625 mm	64.0 in
Roof length	2438 mm	79.0 in
Max. gross weight	2449 kg	3500 lb
Internal volume	5.7 cu m	150 cu ft
External volume	6.1 cu m	166 cu ft
Door opening	2298 x 1532 mm	53.13 in x 57.75 in
Tare weight from	84.8 kg	187 lb

LD 3 AKE Air Cargo Container Ultimate Load Test

Watch the video above and see the Granger Plastics Air Cargo Containers successfully complete the FAA's Ultimate Load Testing. Watch as the LD 3 Air Cargo Container completes the loaded test!

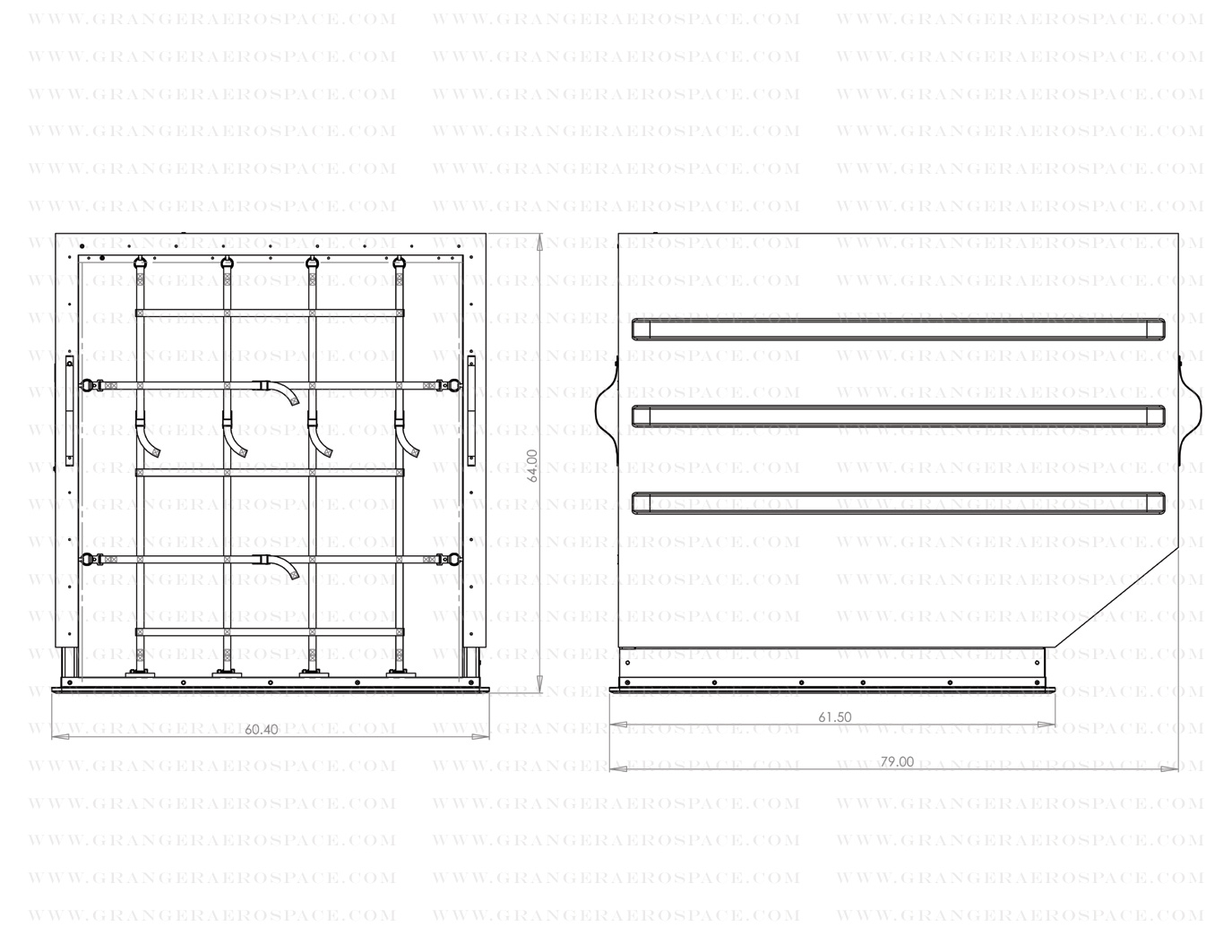

LD 3 AKE Dimensional Drawings

Click below to download LD 3 AKE Dimensional PDF

LD 3 AKE/AKN Information

Click below to download LD 3 AKE Technical PDF

LD 3 AKN

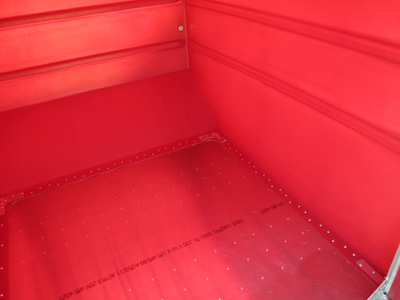

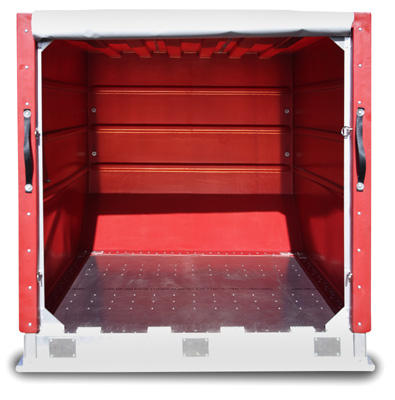

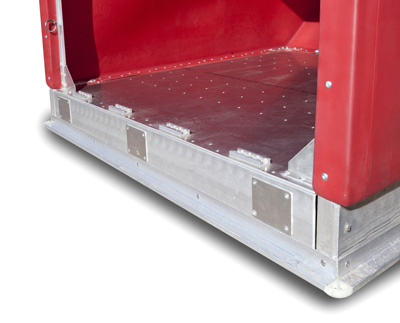

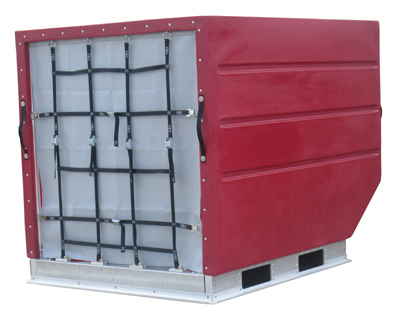

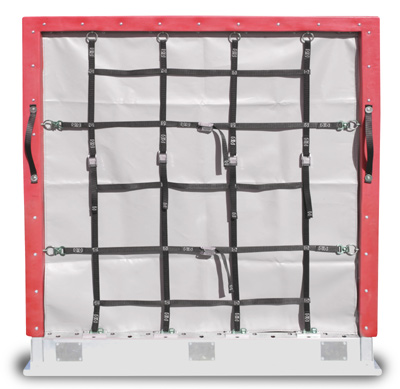

LD 3 AKN Air Cargo Container Image Gallery Click on any of the thumbnail images to the right to display the larger image in the LD 2 Air Cargo Container Image Gallery. Granger Aerospace LD 3 AKN Air Cargo Container

LD 3 Features: Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE. The LD-3 Body is weld-able The Granger Aerospace Products Air Cargo Container is lighter than most standard containers. Granger Aerospace Products cargo containers are robust. No aluminum body panels to patch. No aluminum body frames to replace. Lighter weight, less down time and lower repair costs equals lower cost of ownership. Enhanced Threshold. Fewer fasteners to replace. Unique design allows for faster repairs. Less spare parts to keep in stock. Granger Aerospace Products offers alternative solutions for your ULD needs. It is our goal to offer our customer not only lower cost container but a trusted partnership for your company. It’s our goal to offer more choices to our customers Through or focus on technology and research, we are continually making improvements to our design. Our customers save fuel by using robust as well as cost-efficient lightweight containers.

LD 3 AKN Technical Specifications

Technical Specifications
IATA		C90d
SAE AS 36100 class		LD-3/AKN
Granger Aerospace P/N		NAS 3610 (2K2C)
Base size	1534 x 2438 mm	79.0 in x 60.4 in
Height	1625 mm	64.0 in
Roof length	2438 mm	79.0 in
Max. gross weight	2449 kg	3500 lb
Internal volume	3.5 cu m	125 cu ft
External volume	4.7 cu m	166 cu ft
Door opening	2298 x 1532 mm	53.13 in x 57.75 in
Tare weight from	118.8 kg	262 lbs.

LD 3 AKN Ultimate Load Test Video!

See the forkliftable LD 3 AKN air cargo container successfully complete the FAA's Ultimate Load Testing in the video above!

LD 3 AKN Side Load Test- 8 Days

In typical fashion of Granger's commitment to quality and excellence, Granger decided to allow it's newly unveiled, LD-3 Air Freight Container to hang in the side load position, while loaded with 5,283 pounds of sandbags. Watch in the video above, as the air cargo container hangs for 8 days. Coming soon, Granger Aerospace will video the repairs to this container, making it ready for the tarmac all over again!

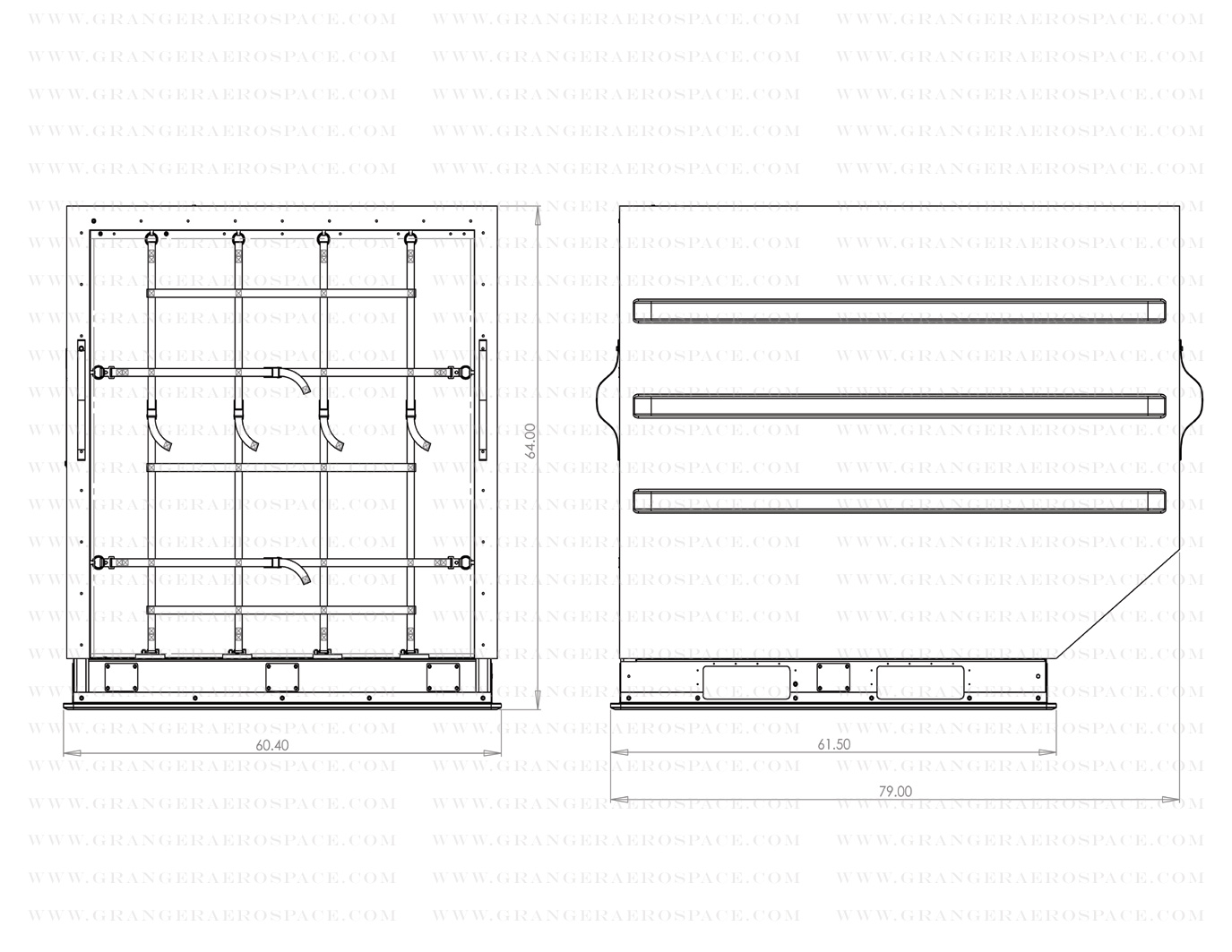

LD 3 AKN Dimensional Drawings

Click below to download LD 3 AKN Dimensional PDF

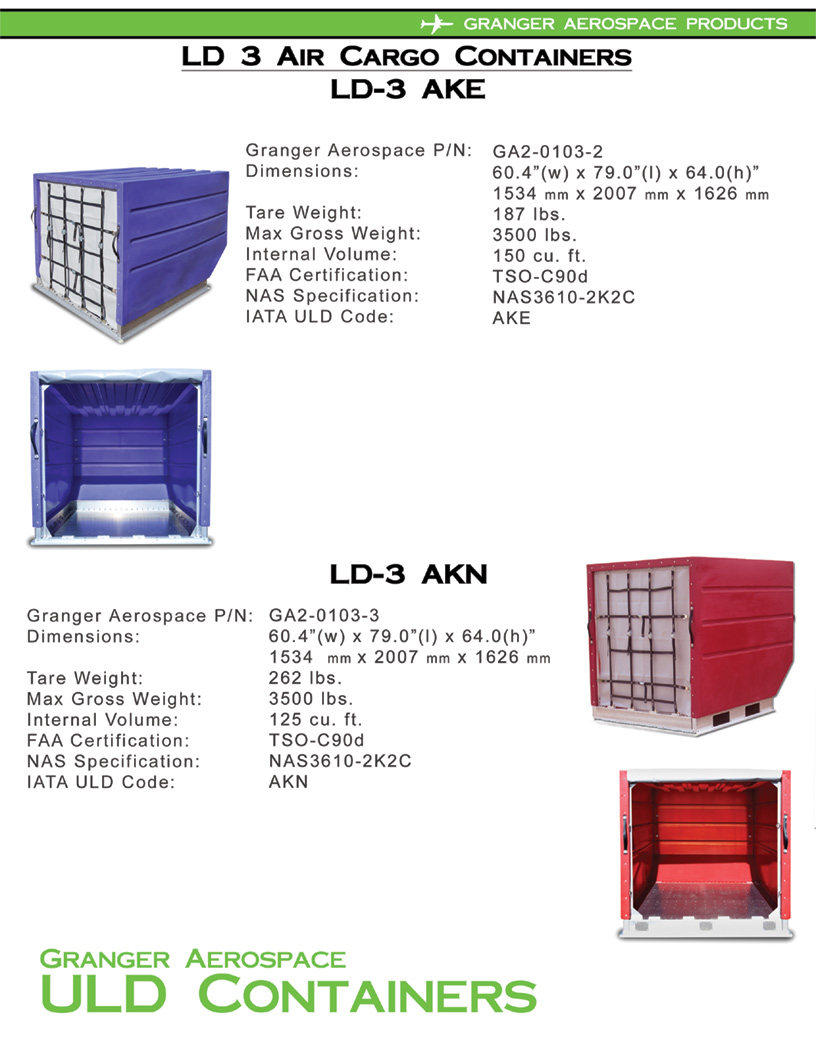

LD 3 AKE/AKN Information

Click below to download LD 3 AKN Technical PDF

•

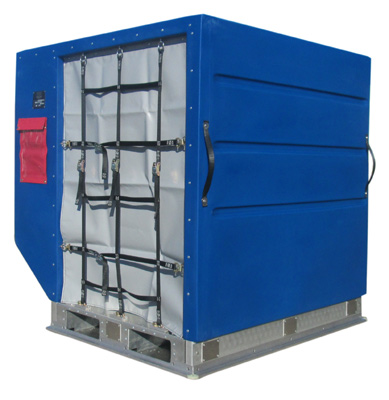

  LD 2 DPE & DPN Air Cargo Containers

  Offering both DPE & DPN variants, Granger Aerospace offers LD 2 ULDs that are built to AS 1677 specifications. Read more!

•

  LD 3 AKE & AKN ULD Containers

  Granger has TSO C90d authorization to build its LD 3 AKE & AKN units. Watch the testing videos on the LD 3 page as well!

•

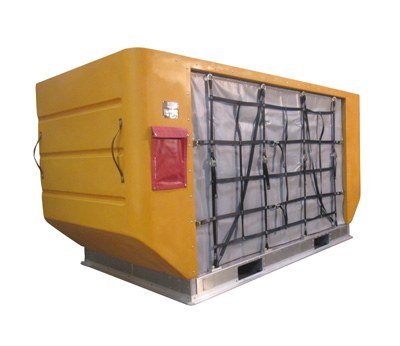

  LD 8 DQF & DQN Air Freight Containers
